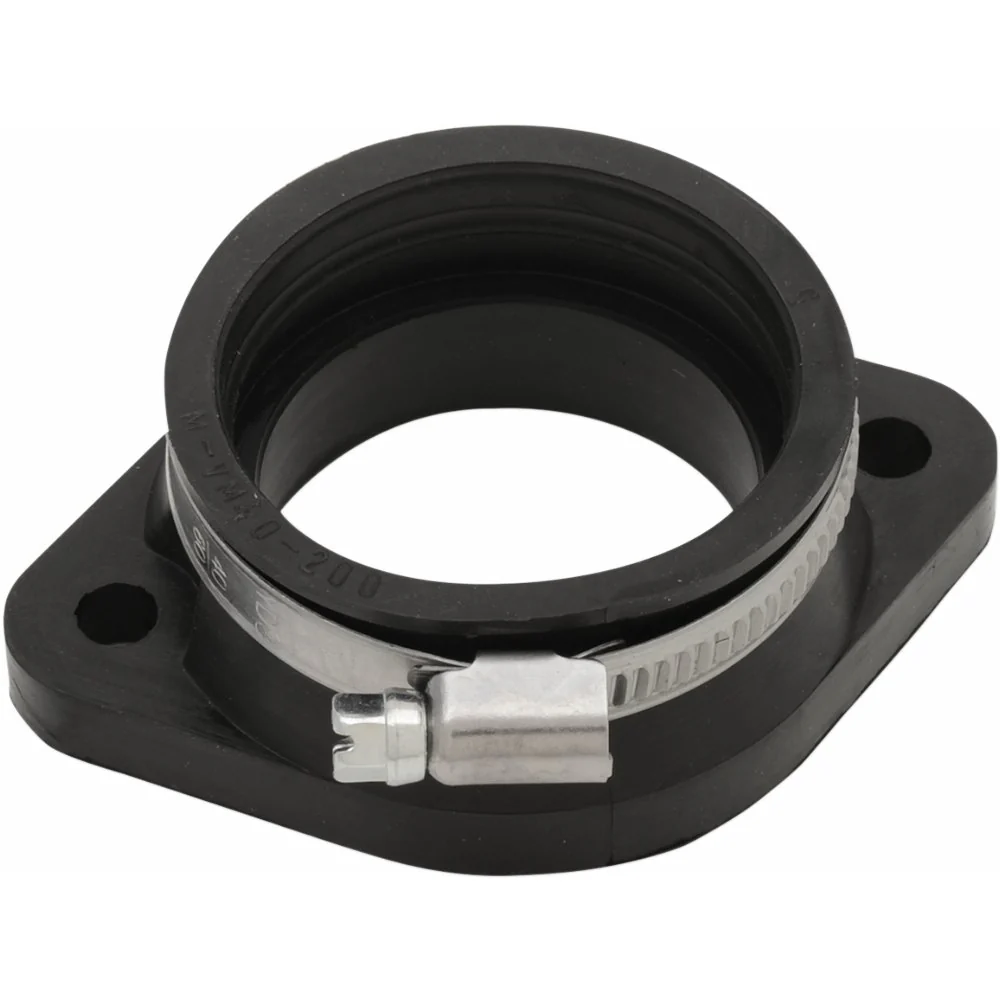

Mikuni Carburetor Mounting Flange
Refer to image diagram for more sizing infoÂ
Features:
- Fits spigot-type carburetors
- Includes clamp
- Made in Japan
- Sold individually
CARB SIZE |
A |
B |
C |
D |
E |
F |
G |
H |
I |
| VM26-28 | 60 | 8.5 | 10 | 60 | 31 | 29.5 | 27.5 | 17.5 | 35 |
| VM30-34 | 60 | 8.5 | 10 | 60 | 37 | 35.5 | 25 | 15 | 40 |
| VM36-38 | 70 | 8.5 | 10 | 60 | 39.5 | 38.5 | 25 | 15 | 43 |
| VM36-38 (HD) | 74.6 (HD) | 8.5 | 10 | 60 | 38 | 38 | 28 | 15 | 43 |
| VM40-44 (HD) | 74.6 (HD) | 8.5 | 10 | 68 | 47 | 46 | 32 | 15 | 52 |
Select Carb Size
From $8.96
Original: $25.59
-65%Mikuni Carburetor Mounting Flange—
$25.59
$8.96
Description
Refer to image diagram for more sizing infoÂ
Features:
- Fits spigot-type carburetors
- Includes clamp
- Made in Japan
- Sold individually
CARB SIZE |
A |
B |
C |
D |
E |
F |
G |
H |
I |
| VM26-28 | 60 | 8.5 | 10 | 60 | 31 | 29.5 | 27.5 | 17.5 | 35 |
| VM30-34 | 60 | 8.5 | 10 | 60 | 37 | 35.5 | 25 | 15 | 40 |
| VM36-38 | 70 | 8.5 | 10 | 60 | 39.5 | 38.5 | 25 | 15 | 43 |
| VM36-38 (HD) | 74.6 (HD) | 8.5 | 10 | 60 | 38 | 38 | 28 | 15 | 43 |
| VM40-44 (HD) | 74.6 (HD) | 8.5 | 10 | 68 | 47 | 46 | 32 | 15 | 52 |
